Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations

จำนวนสั่งซื้อขั้นต่ำ : 1 ชุด ราคา : USD 1-10000/set
รายละเอียดการบรรจุ : พอลลีวูด เวลาการส่งมอบ : 30-50 วัน
เงื่อนไขการชำระเงิน : l/c, t/t, d/p สามารถในการผลิต : 10 ชุด/เดือน
สถานที่กำเนิด: จีน ชื่อแบรนด์: ZZ TOP OIL TOOLS
ได้รับการรับรอง: ISO, API หมายเลขรุ่น: หัวควบคุมการฉีดจาระบี

ข้อมูลรายละเอียด

ผลิตภัณฑ์: หัวควบคุมการฉีดจาระบี วัสดุ: เหล็กอัลลอยด์
แรงกดดันในการทำงาน: 10,000psi แอปพลิเคชัน: การทำงานของสาย
การใช้งาน: อุปกรณ์ควบคุมแรงดันแบบมีสาย การเชื่อมต่อ: สหภาพแฮมเมอร์
อุณหภูมิในการทำงาน: -29~121℃
เน้น:

10000psi Grease Injection Control Head

,

Hammer Union Grease Injection Control Head

,

Alloy Steel Wireline Pressure Control Equipment

รายละเอียดสินค้า

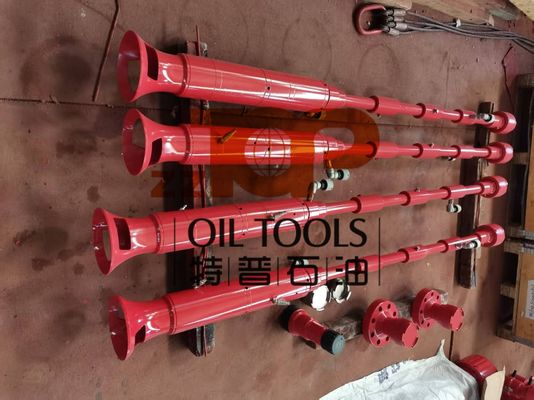

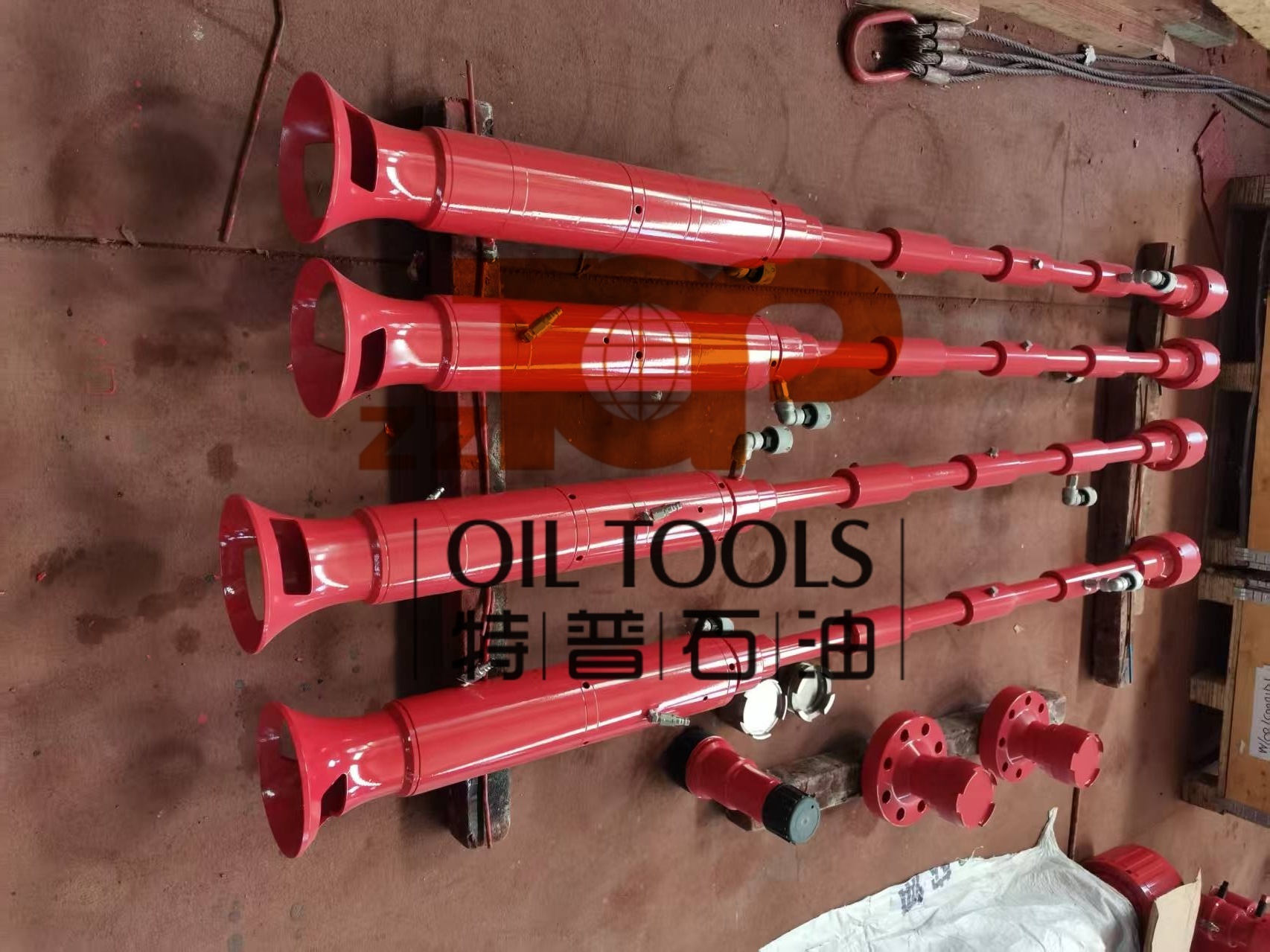

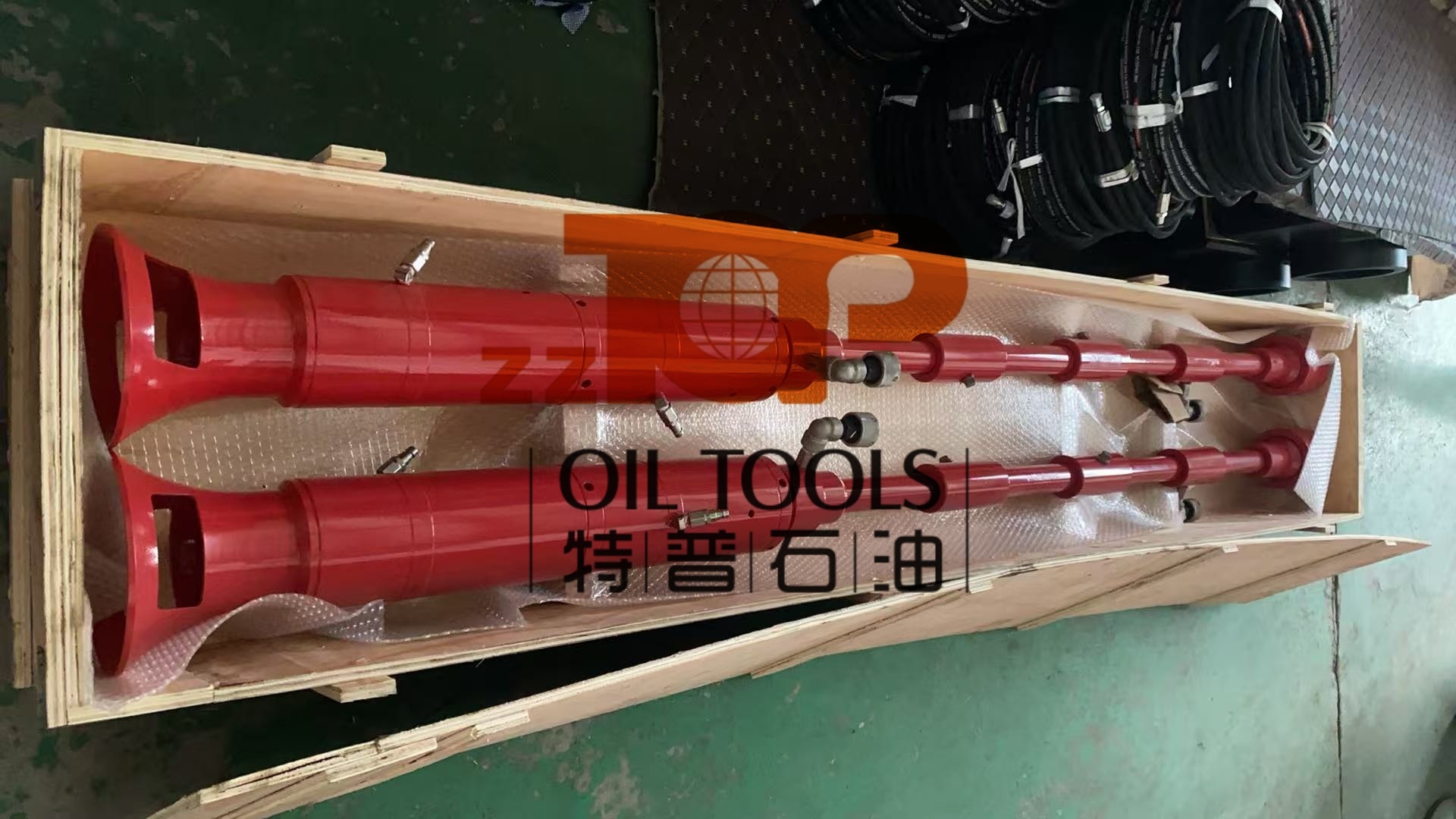

Grease Injection Control Head Assembly with Stuffing box and Wireline Wiper

The Grease Injection Control Head is a sealing device designed for braided cable wireline operations, providing effective wireline sealing functionality. This essential component is used across various oil and gas well applications where pressure control is critical during wireline operations, particularly when fluid or gas loss cannot be tolerated.

Key Features
  • Positioned at the top of the pressure control equipment string
  • Combines Line Wiper Bell, Stuffing Box, Flow Tubes assembly, and ball check valve
  • Essential for maintaining well integrity during high-pressure operations
Technical Specifications
Wire Size Working Pressure Qty. Of Stuffing Box Qty. Of Flow Tubes Qty. Of Hydraulic Port Qty. Of Grease Injection Port Qty. Of Grease Return Port Service Working Temperature
7/32"
5/16"
15/32"
5000Psi 1 4 2 1 1 STD or H2S P+U -20°F~+250°℉
Or As Required
10000Psi 1 6 2 1 1
15000Psi 2 9 3 2 1
Alloy Steel Grease Injection Control Head with 10000psi Working Pressure and Hammer Union Connection for Wireline Operations 0
